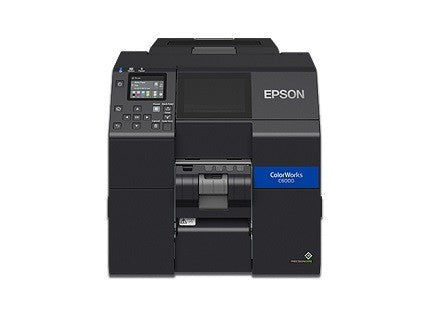

Epson ColorWorks CW-C6000P 4″ Color Inkjet Label Printer with Peel-and-Present (Gloss) – C31CH76A9971

The first printer specifically designed as a color upgrade to black-and-white thermal transfer printers, the ColorWorks CW-C6000P inkjet printer delivers on-demand, 4″ color labels at a comparable price. Engineered for mission-critical applications, this reliable printer speeds through labels at up to 5″ per second. Featuring up to 1200 dpi resolution, the CW-C6000P produces crisp images comparable to pre-printed labels. Compatible with ZPL II, SAP^® and more, and built to accommodate remote printer management, this versatile printer offers seamless integration with your existing workflow. The first color inkjet label printer to offer a peel-and-present option, it’s ideal for fast, print-and-apply applications.

The C6000P gloss printer comes with black ink optimized for gloss label media, which works on the widest variety of substrates, compared to the matte black ink.

Printing Technology:Serial inkjet PrecisionCore TFP

Print Width:4.25″ (108 mm)

Image Security:Nozzle Verification Technology, auto head maintenance and auto missing dot compensation

Ink:

Ink Type:UltraChrome^® DL pigment ink

Ink Palette:

• SJIC35P-C Ink Cartridge (Cyan)
• SJIC35P-M Ink Cartridge (Magenta)
• SJIC35P-Y Ink Cartridge (Yellow)
• SJIC35P-BK Ink Cartridge (Gloss Black)

Ink Configuration:CMYK in individual cartridges

General:

Operating Systems:Windows 10, 8.1, 8, 7 SP1, Windows Vista^® SP2, macOS^® 10.6.8 or later, Linux

Server Systems:Windows Server^® 2019, 2016, 2012 R2, 2012, 2008 R2, 2008

Temperature:

• Operating Temperature: 5 to 35 °C/20 – 80% RH humidity
• Storage Temperature: -20 to 60 °C/5 – 85% RH humidity

Sound Level:55 dBA

Dimensions:

• Printer (W x D x H) 13.4″ x 22.2″ x 12.8″ (340 mm x 565 mm x 326 mm)
• Shipping (W x D x H) 19.5″ x 27″ x 18.5″ (495 mm x 685 mm)

Weight:

• Weight – Printer (Dry): 50.7 lb (23.0 kg)
• Weight – Shipping 75.0 lb (34.0 kg)

Safety Approvals:UL1950/CSA C22.2 No.950, TUV, GOST-R

Warranty:1-year depot repair

Print Fonts:

Barcode:UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

Fonts:

Barcode:UPC-A, UPC-E, JAN13(EAN), JAN8(EAN), Code39, ITF, Codabar, Code93, Code128, GS1-128, GS1 DataBarOmnidirectional, GS1 DataBar Truncated, GS1 DataBar Limited, GS1 DataBar Expanded

Two-dimensional Code Printing:PDF417, QR Code, Maxi Code, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, DataMatrix, Aztec Code, MicroPDF417, Micro QR Code

Media Handling:

Width:

• Media width: 2.0″ (50.8 mm) – 4.4″ (112 mm)
• Print Width: 4.25″ (108 mm)

Type:Inkjet Coated Matte Paper, Gloss Paper, High-gloss Synthetic, Fine Paper, PET Film, Matte Synthetic, Uncoated Plain Paper

Thickness:.005″ – .009″ (0.129 mm – 0.236 mm)

Length:

• Max. 24″ (610 mm)
• Min. 0.31″ (8 mm) no finishing
• 0.50″ (13 mm) peeling
• 0.59″ (15 mm) cutting

Roll Diameter:8.0″ (203 mm)

Core Diameter:3″ (76 mm)

Sensors:Gap, black mark

Guide:

• Gap Sensor Location: Adjustable 0.4″ – 2.4″ (10 mm – 60 mm) in 0.2″ (5 mm) steps from left paper guide
• Black Mark Sensor Location: Fixed at 0.5″ (12 mm) from left paper guide

Black Mark Size:Min. 0.72″ x 0.16″ (18 mm x 4 mm) (W x H)

Die-cut Label Gap:2 mm – 6 mm

Connectivity:

Standard Connectivity:USB 2.0 High-speed, Ethernet

Printing from a Mobile Device:USB 2.0 de alta velocidade, Ethernet

Display Terminal:

Ethernet:10/100 BASE-T

Printer Details:

Display:

• 2.7″ full-color graphic display and 13-key pad allow for local configuration and operation
• Indicators: Power, status and pause LEDs, beeper

Interfaces:Ethernet 1000BASE-T/100BASETX/ 10BASE-T USB 2.0

Power:

Rated Voltage:AC 100 – 240 VAC

Rated Frequency:50 – 60 Hz

Power Consumption:

• 50 – 60 W Printing (average printing)
• 4.1 – 4.4 W Standby
• 0.2 – 0.5 W Power Off State
